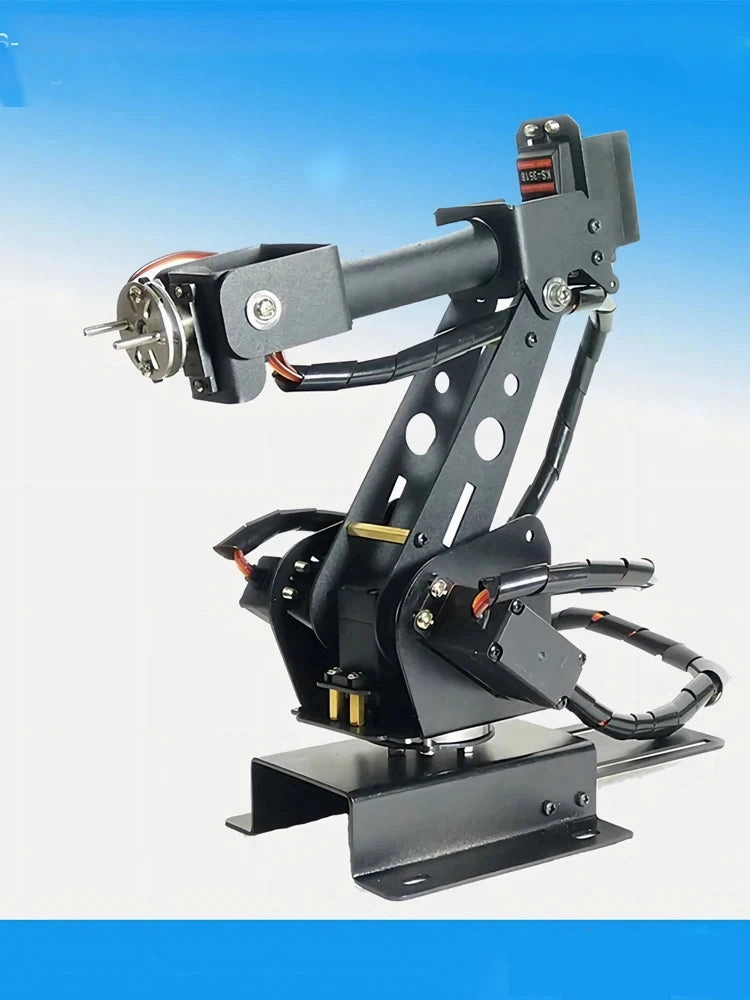

6 DOF Robot Arm ABB Industrial Robotic Arm With Metal Digital Servos For 16 Ways For Arduino Robot DIY kIt Programmable Robot

Title:Robot arm Six-axis robot 6-DOF manipulator Mechanical big arm abb industrial robot model

1) The robot arm does not include a controller (you can buy our arduino kit, 16-way Bluetooth control board. 32 way steering gear control panel.

2) The robot arm uses 4 high-power digital steering gear starting current minimum 2A (the store has power to sell or buy control board free power)

3) The fuselage is made of 1.5mm steel plate. Surface high temperature paint treatment.

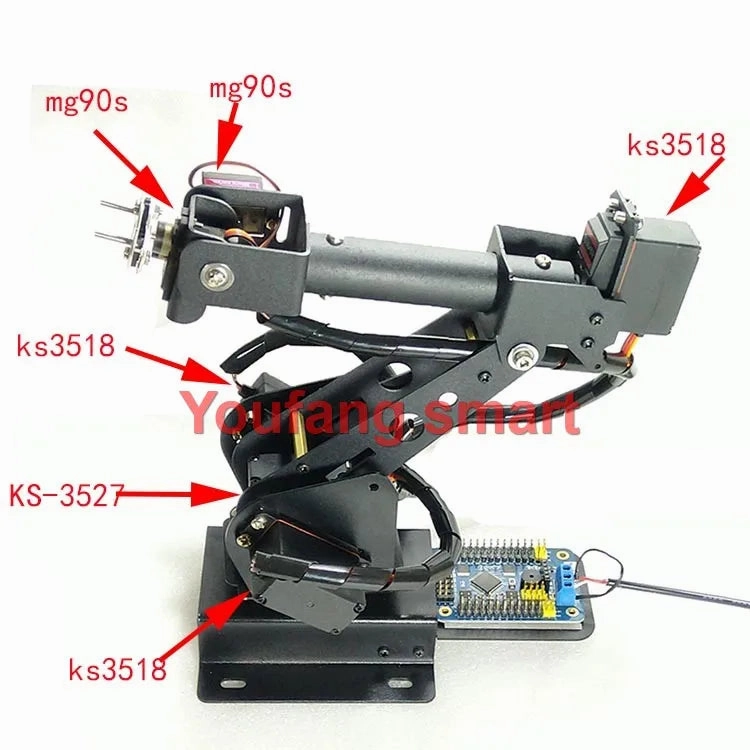

4) The whole set of mechanical arm adopts 4 high-quality KS-3518 digital steering gear 2 small 90s steering gear.

About control: The product does not include the electronic control system, our store has three types of control board sales, can be purchased according to personal needs (see details below). Purchase a 5v3A power supply from our store control board, and provide the corresponding learning materials of the control board. Unable to answer questions online due to limited time and cost. So the purchase needs to have a certain electronic foundation, or a positive scholar. Do not buy without the ability to reach out to the party. This robot arm is a software development and teaching equipment, (it can also be used as a toy to cultivate children's intellectual development) Please do not ask whether it can be used in industry, if a few hundred yuan can be used in industry, 99% of the world's people will be unemployed, it will be a human disaster, I do not want to be a disaster. Self-equipped control board pay attention to the following parameters, otherwise the steering gear cannot run, the pulse width of the control board is 500-2500μsec, and the control board output to the steering gear requires 4.8-6.6v current 2A or more (remember that it is output to the steering gear, not input before the control board) because our mechanical arm uses a large torque digital steering gear, the starting current is relatively high. Self-contained controller without power supply can be purchased at our store discount.

The whole steel plate material is used, the design of the solid non-deformation earth seat is stable and easy to fix, and the control board is easy to install. The hardness is insufficient and the deformation base is small and wobble, and the control board cannot be installed

Type 0 integrated design, small gap, do not collapse to ensure the center of the axis. The two sides of the interface only rely on a screw, serious deformation of the axis can not be centered

The mechanical arm is assembled free of charge, and a bunch of loose parts cannot be started with high-quality high-torque digital steering gear, and non-professional installation causes excessive clearance and unstable operation

Package Included:

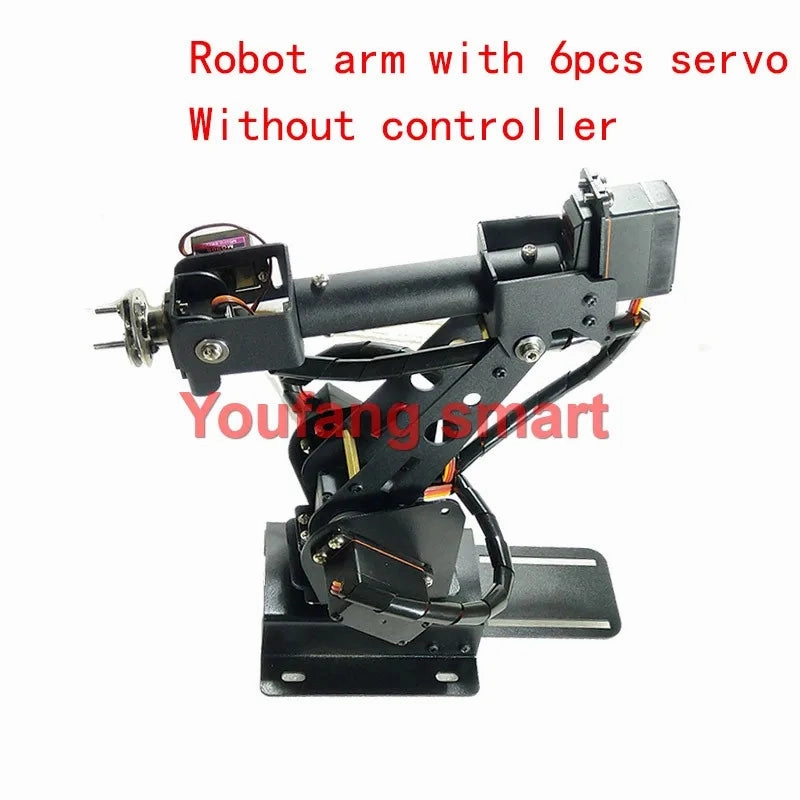

1.Robot with servo: 1set robot arm

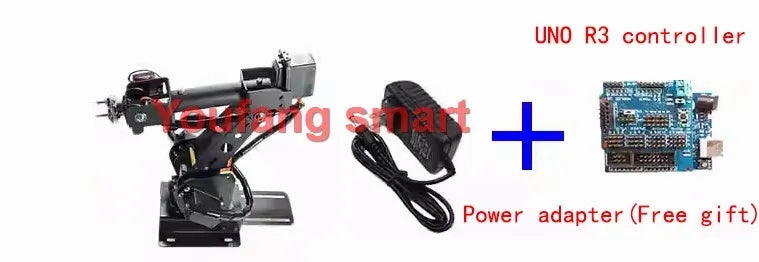

2. UNO full set: 1set robot arm UNO controller Power adapter(Free gift)

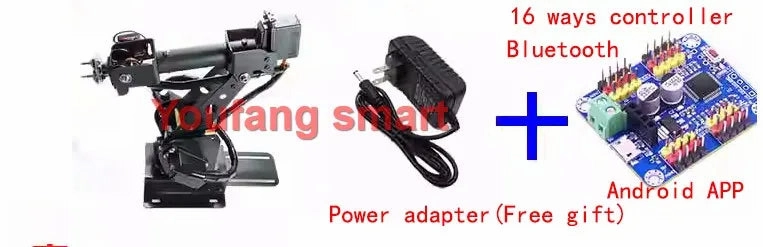

3. 16 ways full set 1: 1set robot arm 16 ways controller Bluetooth Power adapter(Free gift)

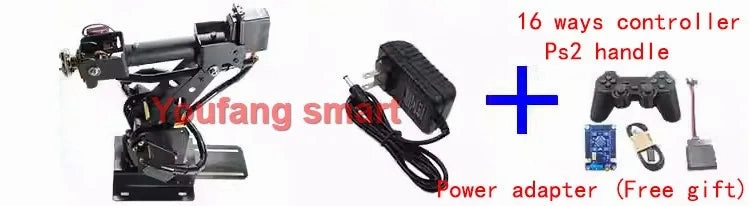

4. 16 ways full set 2: 1set robot arm 16 ways controller PS2 Power adapter(Free gift)

Note:
-The robotic arm has been assembled, the control system is not assembled, and we provide technical documentation

Thank you for your understanding!
