- Powerful and Efficient Motor: The brushless electric motor (model MY1020D) offers 3000W of output power, making it suitable for various vehicles like electric scooters, motorcycles, and ebikes.
- High-Performance Specifications: The motor features a rated current of ≤ 43A, a rated speed of 4900 RPM, and a maximum speed of 6500 RPM. It also boasts a high peak efficiency of ≥ 85% and can operate within a temperature range below 120°C.
- Durability and Reliability: Constructed with a sturdy aluminum alloy shell, the motor is resistant to heat, cold, and corrosion, low noise, long lifespan, and stable operation.
- Versatile Applications: Due to its high efficiency, power frugality, and low noise, this brushless motor is ideal for a wide range of vehicles, including go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, and pocket bikes.
- 6-DZM-12 SLA is a 12V 12AH Sealed Lead Acid (SLA) rechargeable maintenance free battery; Amperage: 12AH / Voltage: 12V; Size: 5.9"(150mm) x 3.9"(100mm) x 3.7"(95mm)

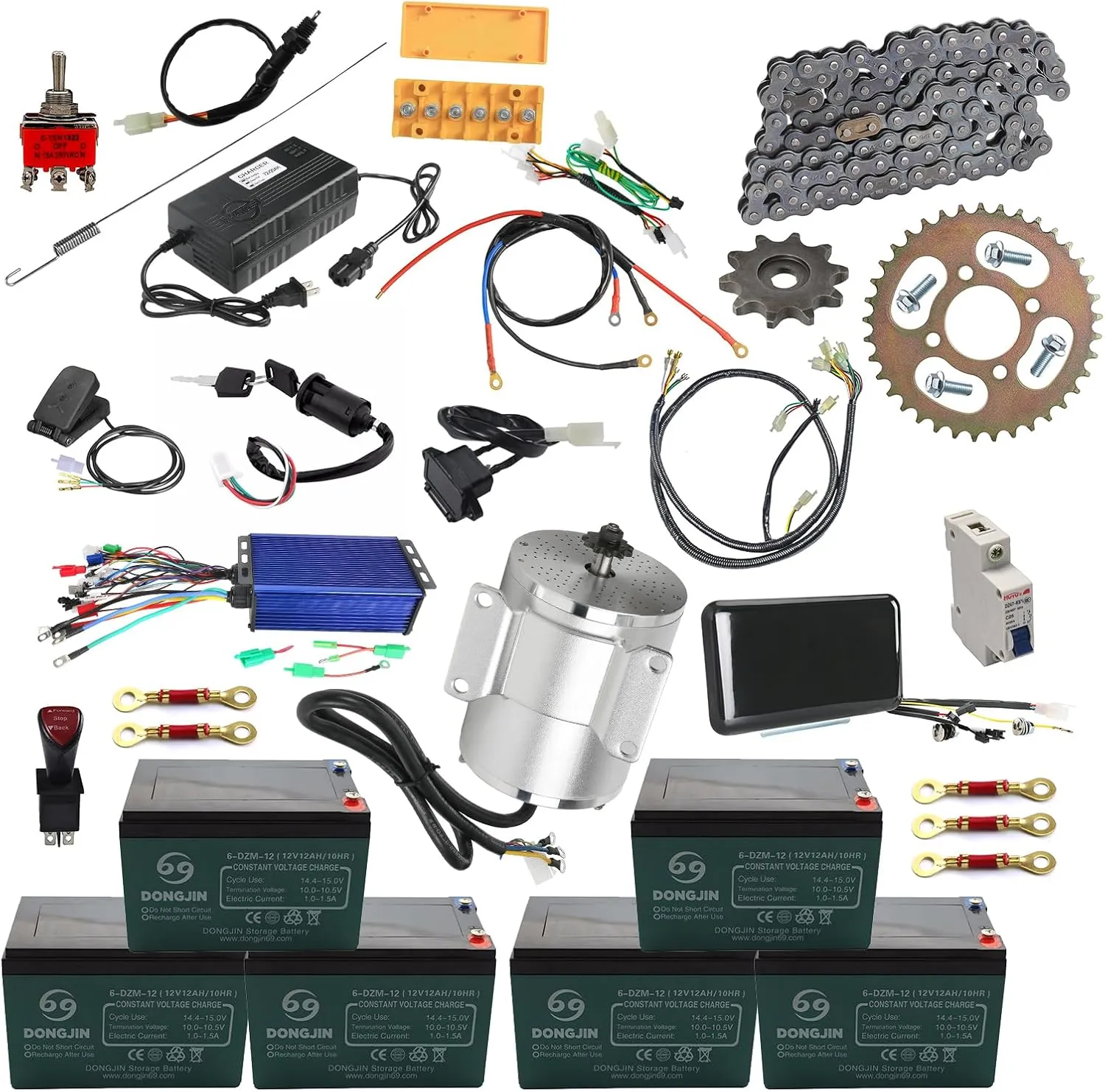

- Kit includes: battery, battery connecting cable, ignition key switch, motor sprocket, air switch, foot pedal, brake switch, wiring harness, 3 speed toggle switch, terminal block, chain, sprocket, motor, charging port, controller, lcd display, forward reverse switch, charger
Brushless Motor
- Model: Boma MOTOR MY1020
- Motor Type: High-Speed brushless Motor
- Output /W: 3000W
- Rated Speed: 4900RPM
- Torque: 5.8N.m
- Wire Length: 650mm (25.59inch)
- Weight: 4657G (10.26lbs)
- Shaft Diameter: 12mm (0.5inch)
- Applicable Controller: 72V 3000W
- Sprocket Model: T8F 11T
Controller
- Current: 45A-60A
- Voltage: 36V 42V 48V 52V 58V 60V 64V 72V 84V
- Phase: Automatic Identification (60°/120° both will fit)
- MOS tube: 18mos (double row)
Battery
- ITEM NO: 6-DZM-12
- Product Dimensions： 3.9"D x 6.0"W x 3.9"H
- Number Of Cells： 6
- Vehicle Service Type：Motorcycle, ATV, Scooter, Dirt Bike
- Voltage：12 Volts
- Battery Cell Composition：Sealed Lead Acid
- Amperage: 12AH
Usage Precautions
Use Dedicated Charger to prevent damage.
Charge in Well-ventilated Area and avoid extreme temperatures.
Regularly Check Connections to ensure secure operation.
Remove Battery for Long-term Storage to prevent self-discharge.
