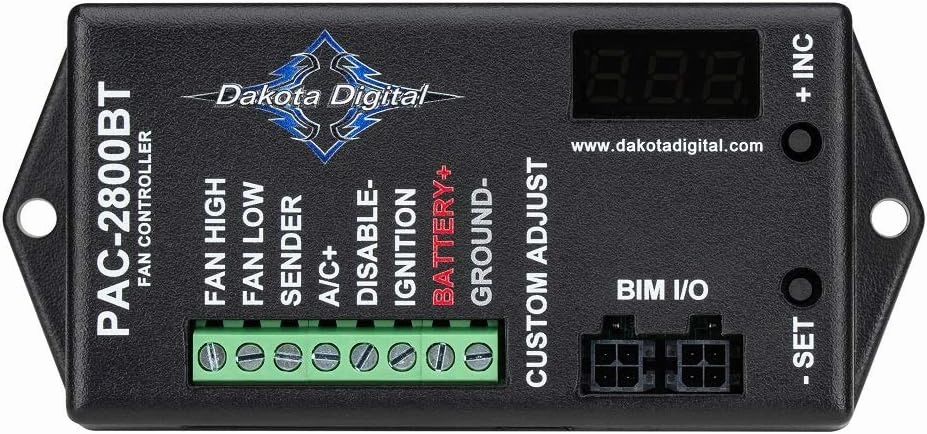

The PAC-2800BT was designed for the ultimate in flexibility and to be a simple add-on in any application using an electric fan. Included is a 70amp relay, enough for even the most power hungry of cooling fans. Fully programmable, the PAC-2800BT will work with your existing water temp gauge, operating from the temperature sending unit already installed. A dedicated sending unit can be installed for applications without a water temp gauge. OBD II compatible vehicles can obtain the engine temperature from the ECM with the use of a BIM-01-2 (or previous BIM-01-1), sold separately.

Compatible with single fan, dual fan or single two-speed fan applications.User-settable on and off temperatures. One 70A relay is included. The use of a second relay RLY-1 (0-30 amp) or RLY-3 (0-70 amp) will be required for dual fan or two speed fan operation (sold separately).

User-settable on and off temperatures.
Key-off run time adjustable from 0-5 minutes.
Works with many stock temp gauge/senders.
Can be directly connected to a Dakota Digital plastic-control box instrument system (does not work with earlier systems with aluminum control box). When used in conjunction with BIM-compatible Dakota Digital instrumentation or a BIM-01-2, a single cable transfers speed and temperature data to the PAC-2800BT allowing the fan to be shut off at an adjustable highway speed!
OBD-II compatible (with purchase of BIM-01-2, sold separately).
Dedicated temp sender available.
Bluetooth enabled for use with mobile programming/ setup app.
LED readout for simple programming.

Box measures 4" wide, 2.25" high, 1" thick. Mounting is recommended inside the cab of the vehicle or an alternate dry environment.

Autometer full-sweep electronic water temperature gauges will require the use of a dedicated Dakota Digital temp sensor 140022, SEN-04-1, SEN-04-2, SEN-04-4, SEN-04-5 or SEN-04-6.

The PAC-2800BT features a 24-month warranty against manufacturer defects!
