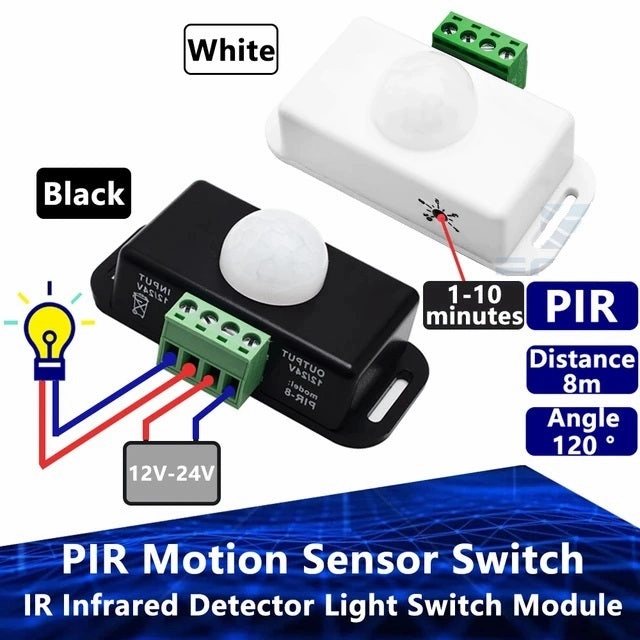

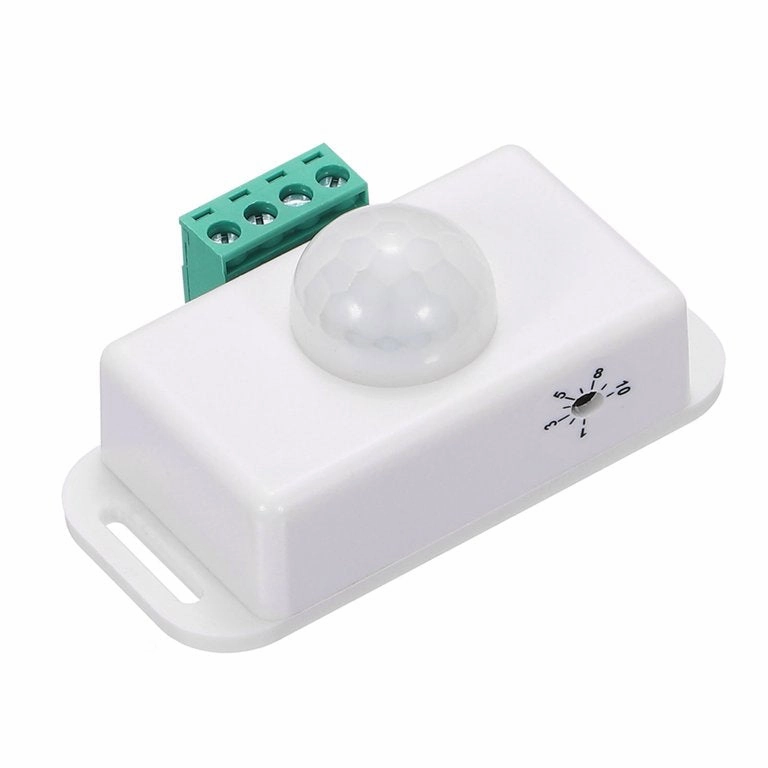

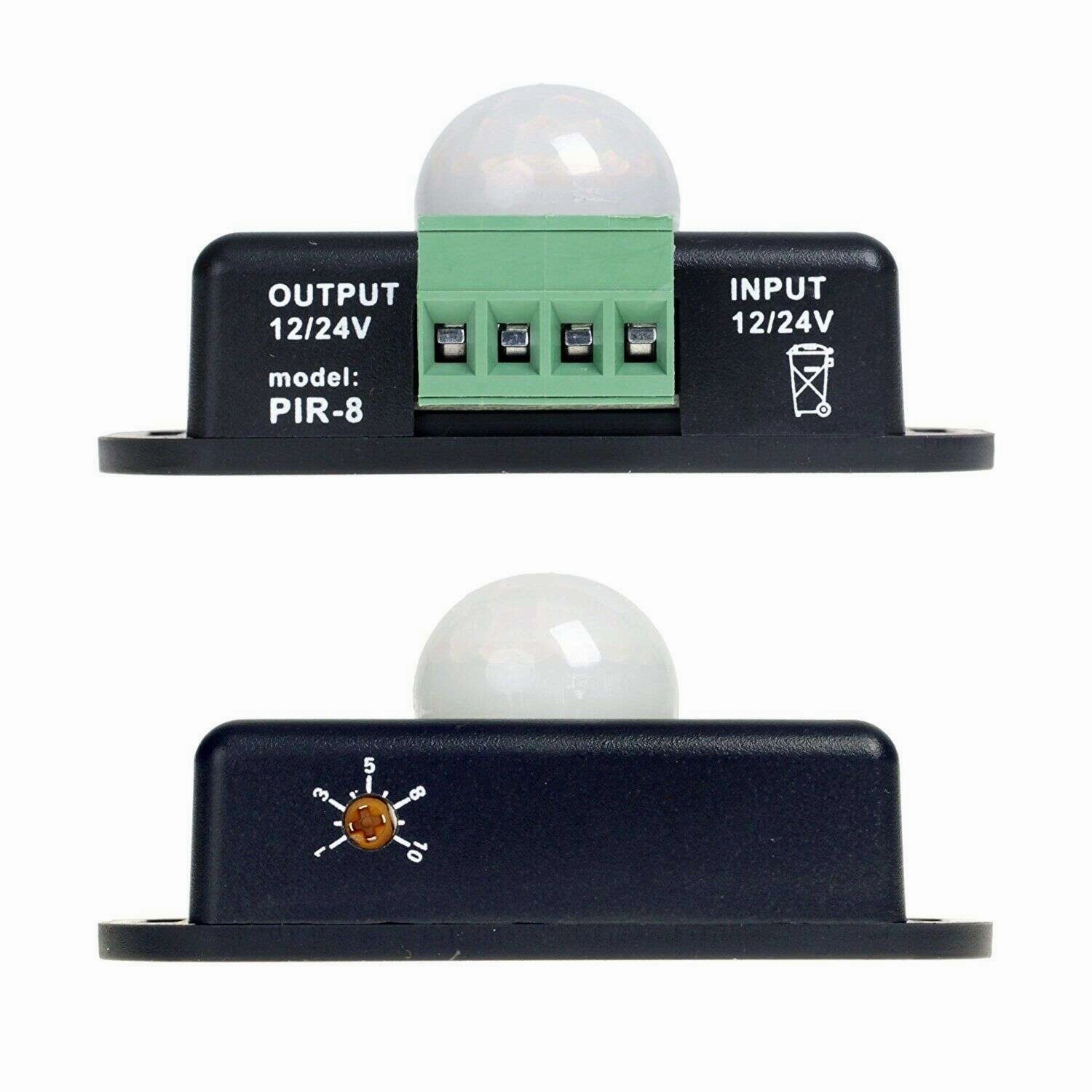

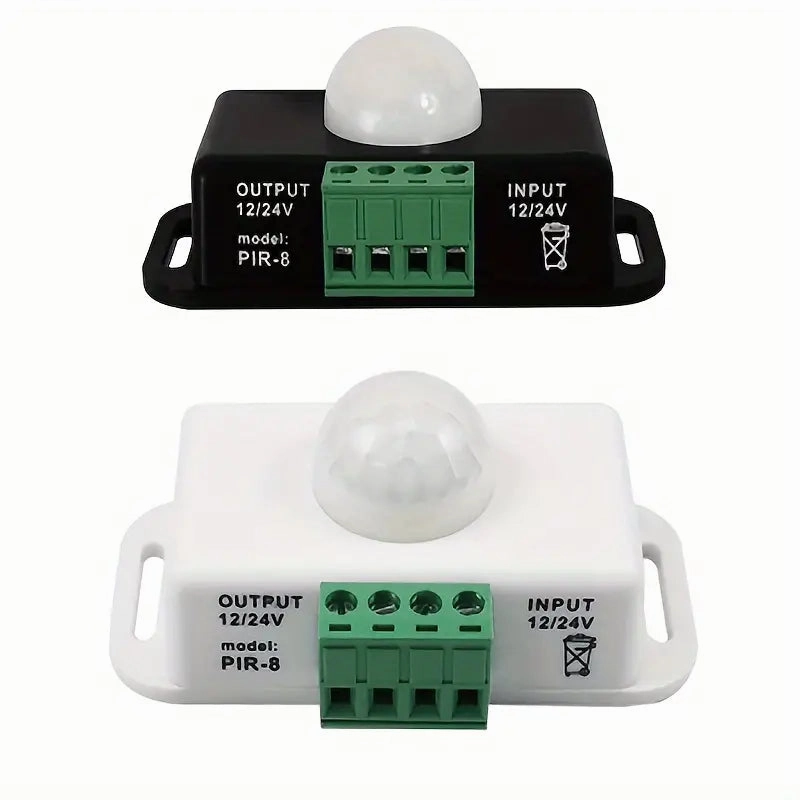

Automatic DC 12V-24V 8A Infrared PIR Motion Sensor Switch for energy-efficient lighting control, security systems, and automated access by detecting motion to activate or deactivate devices
Material:
- ABS (Acrylonitrile Butadiene Styrene): Durable and lightweight plastic material used for the sensor switch enclosure, providing robustness and longevity.
Size:
- Dimensions: 76 x 45 x 34 mm (Length x Width x Height)
Compact size makes it easy to install in various locations without occupying much space.
Color:
- Black & White: Sleek and versatile color combination that blends with most environments.

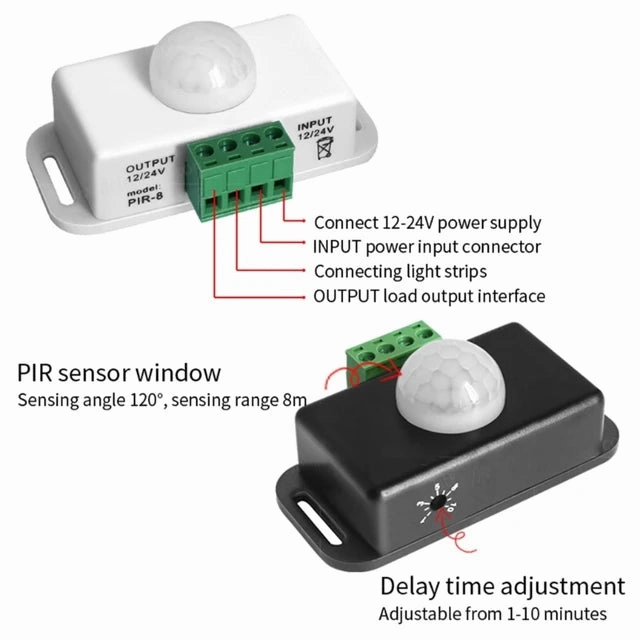

Input Voltage:
- DC 12-24V: Compatible with a range of DC voltages, making it suitable for different electrical systems.
Output Voltage:
- DC 12-24V: Provides a consistent voltage output to connected devices, ensuring stable operation.
Output Current:
- Maximum 6A: Can handle a maximum current of 6 amps, supporting a variety of electrical loads.
Output Channel:
- 1 Channel: Controls a single output channel, ideal for simple applications or single-device control.
Power Rating:
- 72W (12VDC), 144W (24VDC): Maximum power handling capacity, supporting devices with power needs up to 72 watts at 12V or 144 watts at 24V.
Sensor Type:
- Infrared Motion Sensor: Detects motion using infrared technology, activating the output when motion is sensed.
Sensing Distance:
- 8 Meters: Effective detection range up to 8 meters, allowing for flexible placement and coverage.
Detecting Angle:
- 120°: Wide angle of detection ensures broad coverage for motion sensing.
Delay Time:
- 1-10 Minutes (Adjustable): User-adjustable delay time before the sensor switches off, allowing customization based on specific needs.
IP Rating:
- IP20 (Non-Waterproof): Suitable for indoor use only; not resistant to water exposure, ensuring protection against solid objects but not moisture.
Working Temperature:
- -20°C to 60°C: Operates effectively within a wide temperature range, suitable for various environmental conditions.
