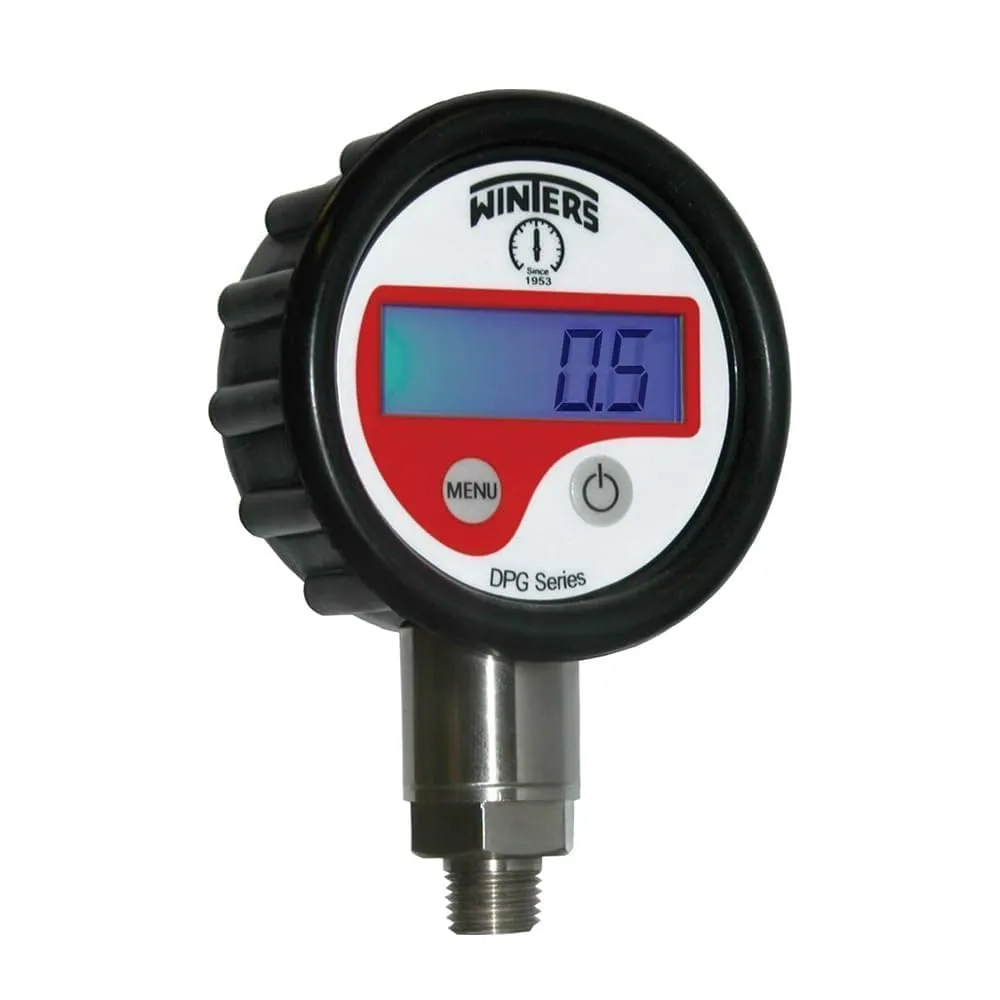

- Simple 2 button operation | Reset to zero feature | Option for display to remain continuously ON | Backlight available | Peak pressure indication option | 316L welded diaphragm seal | Standard Rubber boot | ASME B40.100 compliant | Selectable Pressure unit
- Range: 0-700 bar Operating temperature: 14°F to 122°F (-10°C to 50°C) | Storage Temperature: -4°F to 167°F (-20°C to 75°C) | Accuracy: ±0.5% of readings
- Connection: 1/4” NPT 304SS | Case Size: 2.5” (63mm) | Case Material: ABS (IP64) | Rubber Boot: Silicone rubber (IP65) overall cover | Sensor: 316L welded, Piezo | Operating Life: 1 million cycle
- Power Supply: 2 x AAA battery (1.5V) | LCD Display: 2” x 3/4” (48mm x 16mm) with engg. unit Display | Power Mode: Auto or manual shut-off | Resolution: 1 digit | Response Time: ≤ 3 Hz display refresh rate
- Supply Scope: 1 unit of Winters DPG, Instruction manual & Calibration Certificate | Applications: For Commercial and Industrial Applications.
- Product Dimensions : 3.54 x 1.34 x 4.53 inches; 8.82 ounces
- Date First Available : August 12, 2024
- Manufacturer : INSTRUKART
